Solar Air Heat Installation Process

Step 1: Draw the location of the inlet and outlet.

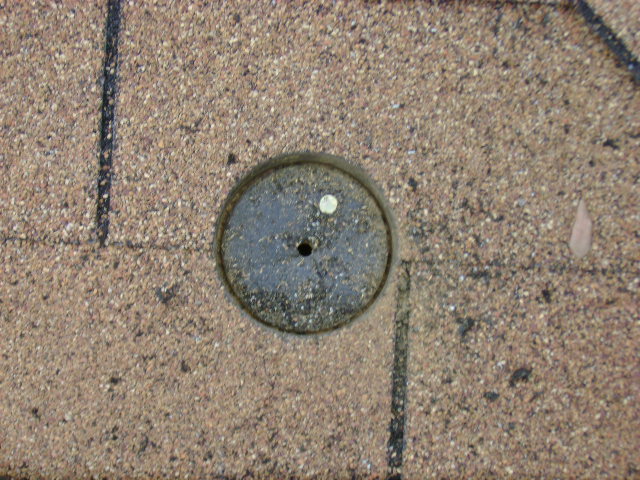

Step 2: Drill two 4 inch holes for the inlet and outlet pipes.
Be careful of nails.

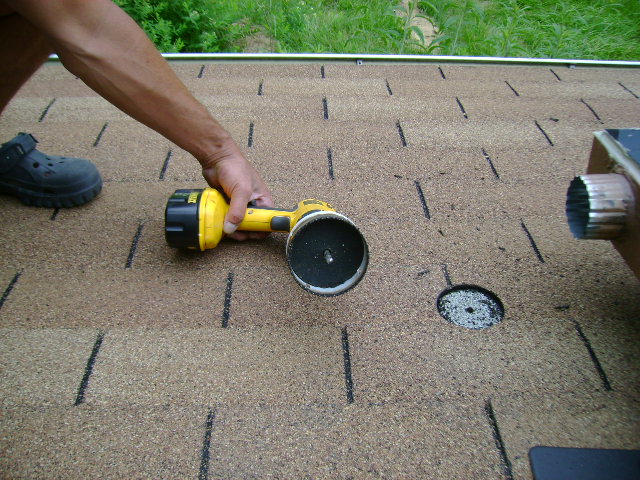

Step 3: During the drilling, make sure to regularly
clean bit of shingle/roof debris and pieces.

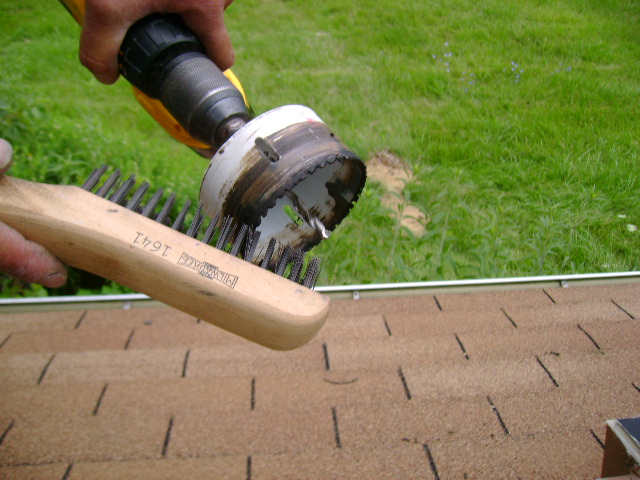

Step 4: Use a metal brush for best cleaning results.

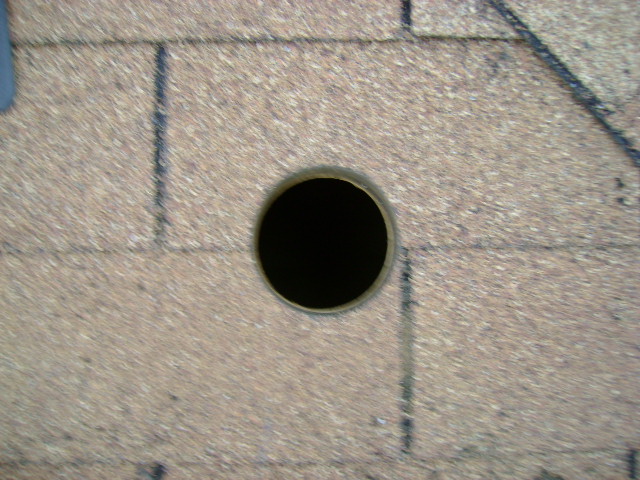

Step 5: Drill holes through the wood until you reach the room below.

Step 6: Mark the locations of the solar panel legs and drill four 3/4" holes.

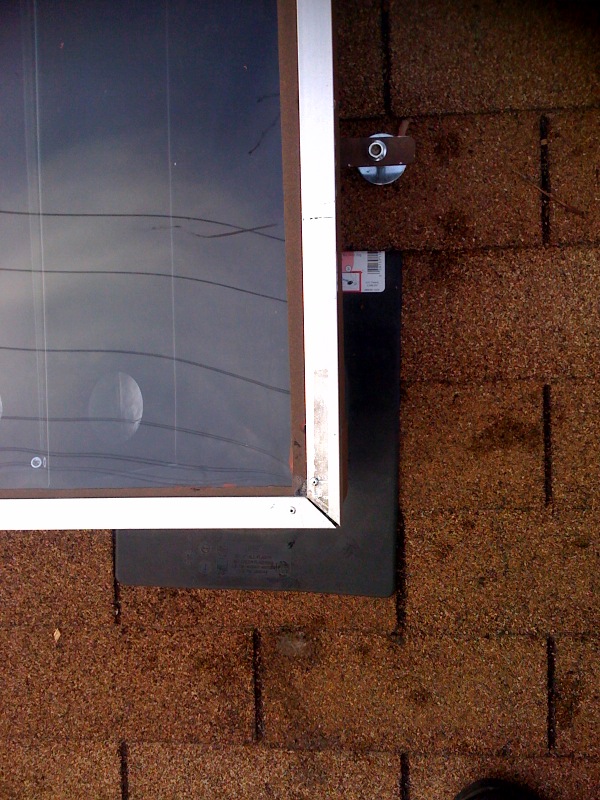

Step 7: place the roof flashing on the inlet and the outlet of the solar panel and place the pipe on the roof flashing

Step 8:tite the band to hold the pipe to the panel inlet and outlet.

Step 9: turn the roof flashing to the following way in both side.

Step 10:Place the solar panel on the legs and put 4 inch
inlet/outlet pipes through the roof flashing.

Step 11:Isolate the leg holes with silicon to secure solar panel.

Step 13: Fasten the nuts.

For To : solar panel installation step 7

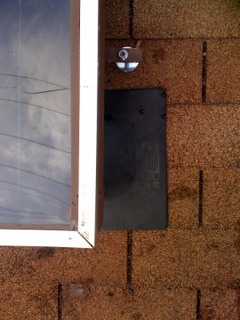

Step 12: turn the roof flashing sohe will go under the roof shingles.

Step 14: Also fasten the nuts from the room below.

Step 15: Installation is complete.
